- Dimensions of mat lifting system are designed by the project.
- The total weight of the system, depending on the need for additional beams, is approx. 250-600 kg.
- System requires electrical socket near by the motor.
- Power supply 230V / 380V depending on the total weight of the mats.
- The lifting system is designed for indoor use.
- The frame is made of strong steel profiles.
- The entire steel frame is powder coated according to RAL code.
- The mat lifting set includes a safety fall block.
- The lifting system is controlled by a radio-controlled remote control.
- It is very important that buildings sealing structure accepts this extra weight.

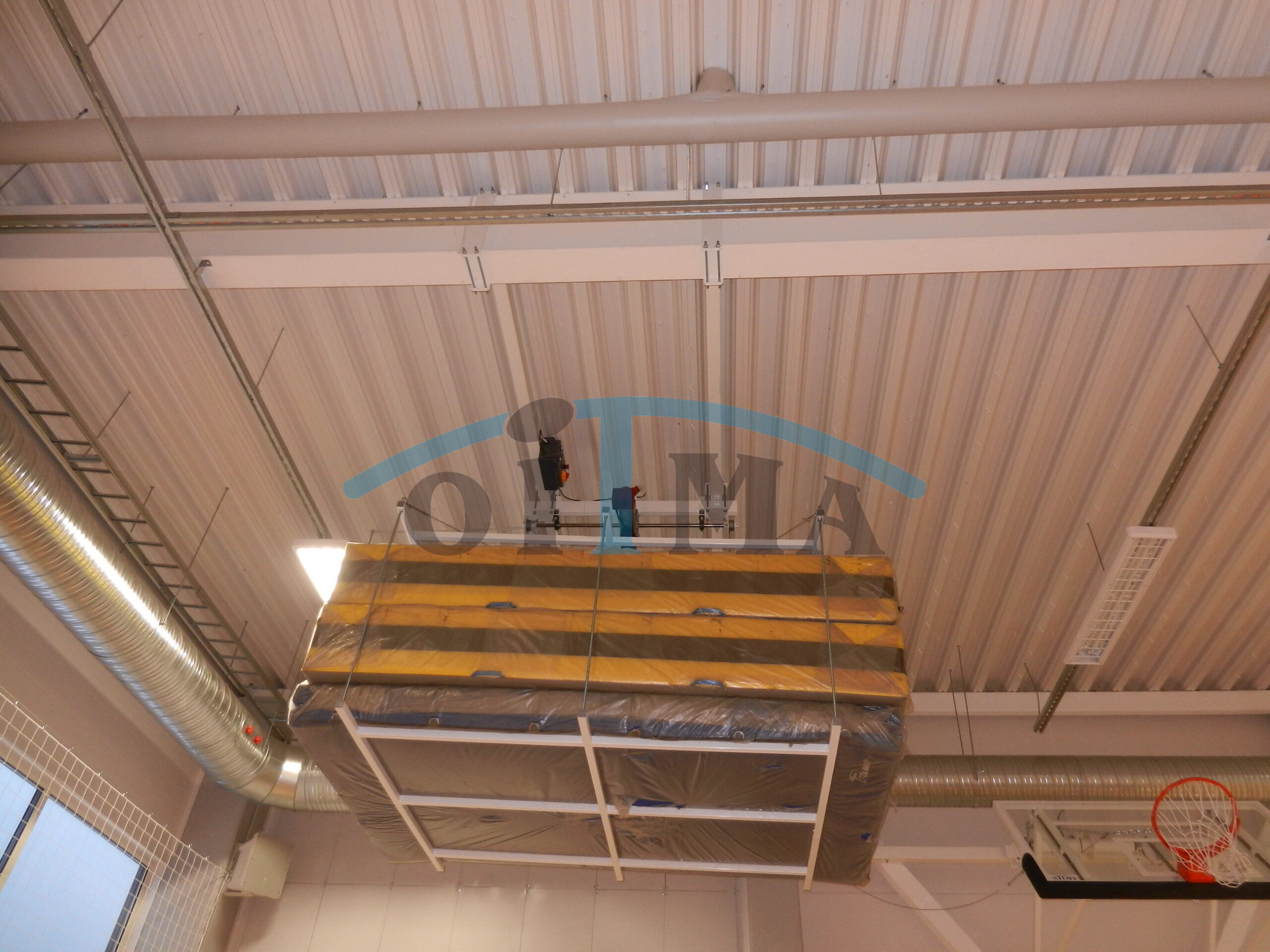

Mat lifting system
Mati lifting system is widely used in smaller sportshalls and facilities where inventory storage space is limited.
Depends of buildings structural situation, system may be suitable for lifting up to 300 kg of mats under the sealing.
